Hollow Clay Brick Making Machine , Solid Concrete Block Making Machine 36-40 R/ Min Spindle

Name: Hollow Clay Brick Making Machine Solid Concrete Block Making Machine 3640 R Min Spindle
Brand: WANGDA
Price: 1 USD

Quality Hollow Clay Brick Making Machine , Solid Concrete Block Making Machine 36-40 R/ Min Spindle for sale

Brand Name : WANGDA

Model Number : JZK45/45-3.5

Certification : ISO9001:2008,CE,CQC,BIS

Place of Origin : Zhengzhou,Henan,China

MOQ : 1 PC

Price : Negotiation

Supply Ability : 30 Sets Per Month

Delivery Time : 20-45 Days

Packaging Details : Standard Packing For Export

Production name : Brick Making Machine

Material : Steel

Color : Green,Off-White

Production Capacity : 10000-13000 m³/h

Reamer Diameter : 450 mm

Moisture Content : 18-20 %

Motor Power : Upper:Y225M-4-45kw Lower:Y280S-4-132kw

Spindle Speed : 36-40 r/min

Contact Now

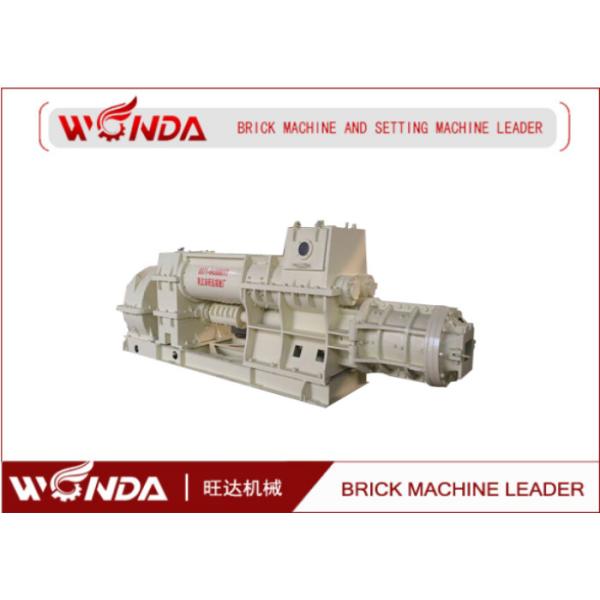

JZK 45 / 45 - 3.5 Vacuum Brick Extruder Alloy Hollow Soild Clay Brick Making Machine

Product Description

The series of brick making machine is taking clay, shale, coal gangue, fly ash, mountain mud, silt, industrial tailings, sludge, etc. as raw materials, through crushing, mixing, brick making machine to make prescriptive cross-section of ordinary solid bricks, hollow brick and other products for building.

Using the technology of our this brick making machine can recycle the wastes, save energy and reduce consumption, which has the obvious economic benefits and social benefits.

The Performance And Features Of Automatic Brick Machine

1. Low noise when the machine working, low power consumption.

2. Automatic machine. After setting the size and strength of bricks, if the outlet bricks can’t reach the setted requirement, the unqualified bricks will return to the stock bin, after mixed, they will be pressed to the good bricks.

3. The machine adopts wear-resisting metal powder spray technology: the stirring shaft, twisted axis and body are processed by long time quenching.

4. The gear reducer is hard tooth face, and the clutch uses screw pressing patented technology, which improve the lifetime of our machine.

5. Reasonable design, compact structure, it can stable running without installing foundation bolts.

6. This machine can make solid bricks, big hole and large section of hollow bricks.

7. High efficiency, high extruding pressure, quick, convenient and reliable.

Technical Parameter

Type	Measuring Unit	JZK50/50-3.5	JZK45/45-3.5	JZK55/55-4.0	JZK60/60-4.0	JZK70/60-4.0
Production Capacity	Pcs/h	12000-16000	10000-13000	16000-20000	16000-22000	18000-22000
Moisture Content	Percentage	18-20%	18-20%	16-20%	16-18%	16-18%
Reamer Diameter	mm	500	450	550	600	700-600
Motor Power	Kw	Upper:Y250M-4-55Kw	Upper: Y225M-4-45Kw	Upper: Y250M-6-75Kw	Upper: Y6-75Kw	Upper: Y6-75Kw
Motor Power	Kw	Lower:Y315S-6-160	Lower : Y280S-4-132	Lower: Y315S-6-185	Lower: Y6-250	Lower: Y6-250

Our Services

Pre-Sales Service

* Inquiry and consulting support.

* Machine testing support before loading .

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* The clients can arrange staff to my factory to learn how to operate the machine

Packaging & Shipping

1.Outside Package:Standard Packing For Export
2. Inner Package:Strength Film

3. Shipping: By Sea

Product Show

Hollow Clay Brick Making Machine , Solid Concrete Block Making Machine 36-40 R/ Min Spindle

Workshop Show

Hollow Clay Brick Making Machine , Solid Concrete Block Making Machine 36-40 R/ Min Spindle

The Delivery On Site

Hollow Clay Brick Making Machine , Solid Concrete Block Making Machine 36-40 R/ Min Spindle
